The Great East Japan Earthquake 2011: facts and numbers
The term Ring of Fire was coined for the 40,000 km circular or horse-shoe shaped area at the edge of the Pacific Ocean, because 90% of the globe`s earthquakes and volcanic eruptions are occurring along it. This activity is due to the plate tectonics of the earth and the ongoing movement and collision of crusted plates. Perhaps this geological activity contributes also to the particular character of the people living there and their culture. Four tectonic plates collide in and around the Japanese archepelago. Japanese seismology knows of 110 active fault lines within its landmasses.
Reason tells us, to build an atomic power plant anywhere on top of the Ring of Fire is ultimately irresponsible by any Government and power companies involved, and to publicly claim that such reactors are reasonably safe is misleading, if not criminal. Why should otherwise both the Government and and Tokyo Electric Power Co. have voluntarily consented that they will have to compensate the people affected by the accident to the full amount of their physical and psychological damage. No doubt the myth of any safety of nuclear power reactors is forever destroyed in Japan.
An earthquake of the magnitude of 9 and a subsequent Tsunami of over 15 meters in height on March 11 at 2:46 pm of this year struck the north-eastern coast of Japan. 25,000 inhabitants were killed or are still missing and 5, 278 were injured. About 90% of all human fatalities were caused by the Tsunami which arrived at the Japanese coastal areas about 46 minutes after the earthquake. The Tsunami reached deep within the reactors of the Tokyo Electric Co. Fukushima Daiichi Atomic Reactors, knocking out their primary and back-up power supply systems necessary to ventilate and to cool the main fuel rods and the spent fuel pool. This led to a meltdown in three of their four reactors and massive radiation leaks and escape of radioactive material into the air, earth and the sea. The lack of a high enough wall against over-sized Tsunamis and the lack of an adequate back-up power system were the main criticisms of the initial International Atomic Energy Agency report on the accident.
About 807 square kilometer of agricultural and urban land have been inundated and devastated by the tsunami. The approximately 150, 000 survivors from the villages and small townships along the over 600 km coastline, sometimes 6 km deep, have been and still in June continue to be provided with food and temporary housing by the Government and the Tokyo Power Company for many more months to come.
As the Government has publicly promised in May, the people affected will have to be compensated for their physical and mental damages and the partial or permanent loss of their complete property and livelihood; the majority of them will have to be resettled in newly built communities which will ultimately have to be financed by Tokyo Electric Co. and by a special tax imposed onto every Japanese citizen. The mental anguish and psychological damage caused to the population and their wider families in the disaster area is difficult to estimate and to be put into concrete money terms. In addition, the earth, the water, the air, the flora and the livestock of an area of about 30 kilometers in diameter around the destroyed atomic power plants has been and will further be exposed to atomic radiation to a degree that makes it unusable for human habitation and agriculture perhaps for decades, if not centuries to come. As it slowly becomes clear, it is not only a matter of protecting people`s physical health from radiation but taking care of the general loss of all stability in their life caused by an enforced long-term evacuation. It should not be forgotten that the lives as such of thousands of people has practically been put on hold.
The earthquake is over, the consequences of the meltdowns are continuing. Experts admit that there is still a lack of knowledge about the health effects of lower doses of radiation especially over an unforeseeable length of time. That led the Government to have an area of 20, occasionally 30 km radius around the destroyed power plants evacuated completely. An even bigger area was afterwards declared a No-Grazing Zone for reasons of food safety on the Japanese market. But as it slowly becomes clear by the latest measurements on the ground and in the air, unfortunately radioactive pollution does not emanate in neat circles.
As Helen Caldicott, the founder of Physicians for Social Responsibility emphasizes in an article in the May 2 edition of The International Herald Tribune, "Doctors know that there is no such thing as a ‘safe’ dose of radiation, and that radiation is cumulative... Nuclear power is neither clean, nor sustainable, nor an alternative to fossil fuels – in fact, it adds substantially to global warming…and mankind is constantly artificially increasing the background levels of radiation on earth." The sudden recent discovery of radioactive material in human mothers’ milk in the Tohoku region bears witness to it. The long-term effects of low doses of radiation over long periods of time are scientifically unknown. Result: as of late May at about 217 locations within Fukushima Prefecture local governments have started to remove about 5cm of the topsoil on the outdoor playground areas. They did not trust the central Government’s official advice that children should simply not be allowed to play outdoors for more than one hour a day. What about the way to the school or after the next rain, one would want to ask. At care centers even at 60 km distance from the devastated reactors children are now forced to spend their days strictly indoors and windows are sealed to keep radiation out. These are the life-threatening conditions the population around Fukushima suddenly finds itselve in. The soil you walk on and the air you breathe by themselves have become a nuclear threat. Where to dispose of the hazardous waste? So far it was assembled it at one corner of the playing field and covered it with a plastic sheet!
human and political implications
Both the natural disaster of an earthquake and a tsunami and the man-made disaster of the meltdowns of three atomic reactors and the succeeding fear of an invisible and ever-present foe in the form of radioactive radiation in the Tohoku region over an indefinite future, both present two separate questions to the Japanese nation as a whole. These questions are closely interrelated.
The first question is whether to continue running the 54 existing and mostly aging atomic reactors spread over 17 locations in Japan or even continue planning and building new ones, even though slowly a suspicion arises that practically none of the excisting reactors can be considered absolutely safe any longer anywhere in this country, if earthquakes of the magnitude 9 and if Tsunamis up to 20 meters and higher have to be expected in the future. Long courtcases over the last decades whether a new power plant might be too close to a known or only hyposized active fault-line, seem silly in retrospect. Not only Fukushima but the country as a whole is situated on the Ring of Fire. Nuclear power plants should simply not be constructed on the Japanese archipelago. In addition, existing nuclear power plants in Japan are all situated on coastal areas, making them in addition vulnerable to both earthquakes and tsunamis.
It came as a geat surpsrise when on May 9, 2011 the Hamaoka Nuclear Plants in Shizuoka Prefecture south of Tokyo run by of Chubu Electric Power Co. were terminated at the urging of the Prime Minister, citing a lingering danger of a long-predicted major earthquake in that particular region. This warning is, however, not new. A citizen’s law suit a decade ago against the operators of this plant because of unsatisfactory safety conditions at this plant has long since been forgotten.
This sudden closure sets an important precedent in Japan. It aggravated public doubts in the safety of nuclear power stations generally. In June the Governor of Saga Prefecture on Kyushu refused to restart their nuclear facilities unless he can be persuaded that safety is ensured. Generally, the conviction now grows that if the government with its scientific backing closes one nuclear plant for public safety reasons in the country without major resistance, perhaps all nuclear power plants should, and could be stopped. As part of this trend the Government is now for the first time even considering to review its plan to construct 14 planned new reactors in the future, if the nation`s energy demands can somehow be met by stricter energy saving measures and renewable sources. Interestingly enough, the comprehensive reporting of the German media on the Fukushima nuclear disaster led the German Government at the end of May to decommission all of its 17 reactors by 2022. One can only hope that this decision will set a persuasive precedent in Japan in return.
The scale and intensity of environmental destruction and pollution created by the Fukushima disaster, no doubt the largest since the atomic bombs in the Second World War is by itself probably the strongest argument against continuing or even enlarging the use of of nuclear power in Japan. As of mid-May, the total area contaminated with radiation by cesium 137 (half-life: 30 years) by the Fukushima accident is estimated to be 800 square kilometers. The dead zone, no-entry zone and evacuation area mandated by the Government as of June overlap to a certain degree. According to the degree of contamination different methods are now studied to clean or remove the top soil.
Even with ever more refined scientific means of predicting major earthquakes by a few seconds beforehand, an atomic reactor can neither be brought to a complete “cold shutdown”, which is the professional jargon for a shut-down, like you can turn off an electric generator run on oil or water, nor can you easily dispose of its hazardous waste and spent fuel anywhere for good in the case of an accident in a country so pressed for space like Japan. So the Tokyo Electric Power Co. informed the public on June 4 that highly radioactive water in underground pits could easily start rising above ground level in less than three weeks and perhaps spill into the sea.
To continue to run an economically developped civilisation on land as narrow as Japan and located right on top of the Ring of Fire, one obviously will have to develop other cleaner, renewable and above all, safer forms of energy. Why should Japan as one of the planet`s technologically most advanced countries not be able to achieve a higher percentage of reliance on non-fossil and renewable energy than New Sealand with 70% and Austria with 65%? At present Japan relies on 4% of its energies on renewables! The whole national energy policy has been highjacked by the nuclear industry about 40 years ago. Why should Japan not be capable to outdo technologically even solar-cities like in Freiburg, Germany?
Following what has become the world’s worst nuclerar accident, Mr. Yoshio Shimizu, the President of Tokyo Electric Power Co. stepped down on May 21, 2011 with the following apology: “I take responsibility for this accident, which has undermined trust in nuclear safety and brought much grief and fear to society”. There can be no question that at the time of constructing the Fukushima reactors the Government and Tokyo Electric Power Co. had known that there had been similar disasters of an equal scale in this area in 1896 and in 1933. They are due to an ongoing process of a collision of two major plates in north-eastern Japan, which will obviously not retire magically in the future. In addition, in June 2011 it was slowly admitted by executives of the Power Company that flaws in the very design for the exhaust system, that is, human error, could have been a factor leading to the hydrogen explosions in the reactors. It was also recently revealed that the Off-site Operation Center, the nerve center of the whole power plant, did not function because of total power failure, and thus couldn’t warn the surrounding population of imminent radiation leaks and initiate their evacuation. The Tokyo Power Co. was totally unprepared to deal with a meltdown for the first 20 hours under a total power failure.
What, however, should not be forgotten is that the chronically lax supervision in Japan of the aging atomic power plants has to be stopped. A first step in this direction would be a clear separation of the Government`s role as main safety regulator and its role as the main promoter of nuclear energy, a conflict which has been detected also in other countries. In addition, as has recently been suggested in international news papers, the Japanese culture of collusion of promoting, regulating and supervising nuclear power, including the government, nuclear regulators and plant operators, probably extends to the courts as well. In how far the endless comments on TV of socalled neutral "experts" from various universities are part of this collusion has still to be revealed. In other countries nuclear regulatory authorities have in principle been independent bodies.
Destruction in Kesenuma City
The picture slowly arising is that since the 1970’s the local governments and various nuclear power companies have been showering impoverished village communities with generous subsidies, luxurious payouts and above all jobs to gain their acceptance for the initial start and later of the continuous enlargement of nuclear facilities within their vicinity. Naturally, safety concerns could always be quietened with more money.
Towards a society based on non-fossil and renewable energy
It will indeed be difficult to change a by now deeply ingrained cultural hypnosis not only in Japan, but practically in most socalled advanced economies, namely that they can satisfy the ever increasing demand for energy in the future by a web with a relatively small number of huge power stations which are mostly run on fossil fuels or atomic energy. Japan currently relies on nuclear power for only 30% of its overall energy needs. Its national target was set at 50% nuclear and 20 renewable energy production from 2050 onwards. But the nature- and man-made disaster in Fukushima recently gives Japan a unique chance to challenge Japan’s nuclear industry of the last fifty years. It had occupied a privileged and protected place in its postwar rise to an economic power where questions of safety and environmental pollution were usually put on the back burner. The disaster in Fukushima can be made the starting point for a new national economic model. Nothing less than a second re-birthing of Japan after the Second World War is needed for Japan to rebuild its stagnant economy. This includes the planning of whole towns and villages as wells as their individual architecture, and that with a conscious focus on clean and renewable energy. In fact, the whole world is keenly watching what Japan will make of this unique chance of renewal.
The only satisfying answer to the national problem of energy production and distribution which is suddenly sharply defined by the recent Great Earthquake of 2011 would be a complete paradigm shift in how to produce and distribute the daily needs of energy in Japan. In the future it will have to be produced completely by a combination of renewable resources like wind, solar, geothermal and hydro-power biomasss and sea-waves. Each cell in a regional web of these new eco-communities of the future will have to produce its own energy, recycle its own waste and sell the surplus of its own energy to the larger commercial entities in the same region. The many and so far mere consumers of toxic fossil and atomic energy of today have to be turned into the future producers of clean and renewable energy. Local autonomy in energy has to go so far that every dwelling becomes energy self-sufficient; any major artifact in the new eco-communities, static or movable, is turned into a power station of renewable energy. Every man-built sun-exposed surface can potentially create solar energy. Only such new system of living based on renewable energy and a decentralized energy distribution net will also solve our urgent problems of climate change and global warming since they are caused by our dependence on fossil fuel, too.
These revolutionary sounding proposals of a complete reversal from a centralized to scattered, and from fossil and nuclear to renewable energy generation, both on a regional and national scale, was already documented in a 2006 book on "The Renewable City" by Peter Droege.
Project Healing Fukushima, an overall framework
The second question put by the disaster of Fukushima Earthquake is equally difficult to answer: How in detail to rebuild the completely devastated coastal region of Tohoku. The main function of a Reconstruction Design Council to be lead by Makoto Iokibe which was initiated by the Prime Minister around the end of April was probably conceived to be basically political, economic and administrative and will probably stay so. Such an organization is surely necessary but it should definitely be complemented by a specific Architecture and Planning Council to suggest realistic physical proposals for completely new eco-communities and eco-towns in those areas to be based on sustainable architecture and renewable energy. Now already for months this disaster of Fukushima has dominated the global media. The same media will also pay attention how Japan will re-birth itself for the future. It would seem advisable that the best foreign brains in the fields of architecture and urban planning should be invited to be part of this council.
So far, Japan has not even one experimental eco-town anywhere on the drawing board and therefore lacks the professional planning skills required to design such new eco-communities. As will be elaborated later, the creativity and architectural skill from its own youth should also be invited to complement the now existing political and administrative job of the Reconstruction Design Council under the Prime Minister.
Before and after the disaster: Soma City and Minami-Sanriku City
The first stage of the re-settling the tens of thousands of earthquake and tsunami refugees was a blanket on the bare floor in various gymnasiums of larger local school complexes. Perhaps even the well-meant care provided by the Government and volunteers provided in the refugee centers, under the circumstances, was not enough to prevent mental and physical exhaustion among the older refugees. No wonder, the stress caused by the lack of sufficient nourishment and of any privacy, inadequate hygiene and bitter cold lead to an increase of diseases and the death-rate, especially among the elderly.
Initial refugee camp and temporary housing
The second stage of this process of re-settling, still unfolding, is slightly more comforting for the refugees; it is the move into simple temporary housing. 15,200 units were commissioned by the Government to be erected by mid-August. In reality they consist of tightly packed identical units of prefabricated boxes. At some of the destroyed coastal settlements it was very difficult even to find suitable level sites for them. There was also a strong desire voiced by the refugees to live as close to their home sites as possible. Admittedly, these temporary homes constitute an upgrade of the living conditions compared to those of camping in gymnasiums, but they fail to show any effort to create an aethetically attractive architectural grouping to produce a human community, a home, i.e. more than a shed for animals. These “homes” might provide a bath and a kitchen to people again, but it has definitely been forgotten that these people didn’t choose to live there but are condemned to live there by circumstances, which were partly of human making, perhaps for up to 5 years. And some beauty within one`s home and the environment around it are not luxuries but necessities for the human being like a bath or a bed. The temporary houses smell of a purely technocratic approach to a human problem. No wonder that quite a few refugees refused to move into them and found a place of their own choice which they will charge to the Government. As of June there are already vacancies in some of these houses.
The third stage will start with the refugees moving into their new homes. According to the latest questionaires in May, the majority expressed their strong desire to return to their old place, the place their ancestors had lived in for ages.
This is obviously not the place to blame anyone for missed opportunities or bad will, but above all to suggest major alternatives to the spatial order prior to the devastation. The single most important task is not to keep exposing the local population to the same gruelling process of destruction by larger earthquakes and tsunamis again and again. There can be no question that at the time of constructing the Fukushima reactors the Government and Tokyo Electric Power Co. had known that there had been similar disasters of an equal scale in this area in 1896 and in 1933. They are due to an ongoing process of a collision of two major plates in north-eastern Japan, which will obviously not retire magically in the future.
The recent blueprint of a regional redevelopment plan publicized by the Miyagi Prefectural Government was well-meant, but not enough to prevent similar disasters to happen in the future. This blueprint distinguishes between three types of future settlement models for three distinctly different types of geographic characteristics along the seaboard: a plain type model, where large plain paddy fields abound, a ria coast type model, in areas mostly hilly and with a deeply indented coastline, and an urban type model, where factories and fish-markets are mainly located. The redevelopment plan does mention that in all three models public facilities, hospitals and schools should possibly be re-located on higher ground but human dwellings would continue to be located in the valleys. The whole plan sounds more like a survey and return to the old spatial order rather than a proposal for a new one which would be able to survive the next large-scale earthquake.
Future spatial order of Fukushima region at three levels
From my own experience as an architect in Japan over the last thirty years I would recommend the following overall basic new planning framework for all new settlements along the coast.
All human DWELLINGS should be rebuild on higher ground, that means, on the slopes and/or on the tops of hills and mountains, as close as possible to their old homes, but from about 20 meters above sea-level upwards. COMMERCIAL and PUBLIC BUILDINGS like factories, schools and townhalls should be placed at heights between between 10 and 20 meters above sea and built earthquake proof. Only AGRICULTURE, HUSBANDRY and FORRESTRY could take place on level grounds in the valleys, the very area, where you naturally find the most fertile soil anyway. The PORTS of the many fishing villages should be constructed like castles at the edge of the sea, in shapes not opposing but channelizing the huge forces of tdal waves of the sea. See sketch in attachment.
Precedents of such hill developments exist especially in countries around the Mediterranean Sea which are also prone to major earthquakes. Examples of settlements on hills and steep slopes exist also in Japan, such as Sotodomari on the south-eastern coast of Shikoku and Okinoshima a settlement on an island just of the coast of Shikoku, to mention a few.
Sotodomari: infra- and element structures
Both are examples of settlements not slowly grown over long periods of history, but founded rather recently. Sotodomari was founded about 150 years ago by an enterprizing family as an offshoot of a bigger settlement called Nakadomari. Both are inhabited by people working mostly on the sea, with vegetable and rice cultivation as a minor occupation. Both have all individual dwellings arranged on man-made terraces climbing the steep slopes of a mountain. Even though man-made, they are closely structurely integrated with their surrounding topography. Only collectively used buildings, such as for fishing and marketing purposes or for community assemblies were placed directly on the sea-shore. There are no records of any major earthquakes or tsunamis in the village. The greatest recurring natural hazards there are regular Taifuns.
Okinoshima Island: infra- and element structures
In a sense, however, they appear to be useless as a prototype for any settlements at our time, since they have no provisions for motor cars which have become a sine qua non in our present societies, even rural ones. Still, they provide a good lesson in process-planning, and in this sense are valid even today: their large-scale infra-structures such as the central spine in the form of a river and the system of terracing were built collectively and incrementally, whereas the small-scale element-structures, such as the individual dwellings in their different forms and sizes were left to individual families to construct over time. There is surely no technological problem in our times with building even on the steep slopes and accommodating the private car in addition to it.
Only such new overall spatial order would first be able to stop the vicious cycle of repetitive destruction and rebuilding of one's settlements along the north-eastern coast of Japan since ancient times. The cyclic collision of plates is just a fact of life in that region which has to be accepted and adapted to. Secondly, it would also take care of any future rise of the sea-level as a consequence of global warming. This threatening danger will have to be encountered sooner or later anyway by all human communities along any sea-front. Scientific estimates predict a rise of the oceans by 1 to 3 meters due to the melting of the layers of ice in the arctic regions.
Strategy: an appeal for an international architectural competition
There is a recent precedent for the here recommended process of re-birthing of one’s communities, even at the scale of a city: Around the turn of the century the city Kyoto had the courage to hold an international competition for a "Future Vision of Kyoto in the 21st Century". Kyoto has about one million and a half inhabitants. How to revive a city suffering from a long recession and physical stagnation, was the question.
The whole world has shown so much good will, solidarity and compassion over the last months for the victims of the the Great East Japan Earthquake of March this year. Every crisis is a unique opportunity for change. The central Japanese Government should use this positive energy and invite all nations to take part in an international competition for ideas and concrete proposals for the rebuilding of Tohoku as a whole. It could be called Global Project Healing Fukushima, since many problems to be tackled are not only local but global ones anyway.
In addition, the Government should also tap the unused resources of talent and imagination among its own young architects and ecologists who are now studying these subjects at various Japanese universities, and announce a similar competition at all Japanese universities for a similar competition but at student scale and level.
world exhibition or world exhibitionism
At the start a few comments on the the content and the overall idea of the biggest World Exhibition ever held, with a projected visitorship of 70 million people. The rather challenging theme of this exhibition "Better Cities, Better Life" against the background of skyrocketing city of Shanghai should probably be taken as an expression of the hope and dream of the Chinese people as a whole whose majority has been living in great hardship and poverty for over 2000 years. Perhaps we should call their aspirations for the 21st century "the Chinese Dream" as we have generally accepted "the American Dream" as the dominating cultural motto for the 20th century, even though the external cultural trappings of both dreams seem to be identical so far. But dreams they are both, and you have to be asleep to be dreaming, we should not forget.
With this understood, it is no wonder that despite all the hype and propaganda by the Chinese media that this show is to exhibit the latest know-how in sustainable architecture and zero carbon urban design, one is surprised to learn that all of the pavilions and extravagant installations beside the dominating China Pavilion itself will be disassembled and discarded as scrap in October after of the fair ends. Thus, this exhibition will follow the same pattern of consume and waste we are used to from previous world exhibitions. We should remember that the original idea of World Fairs was basically to showcase domestic industrial and political might and educate others on one's own culture; but this does seem hardly necessary any longer in the age of the global internet.
It is indeed sad that the community of nations even in the 21st century has not been able to come up with a more mature and rewarding purpose for a World Exhibition than basically to assemble bravour pieces of individual, corporate or national egotism at great costs to acquire the land it stands on and to relocate the residents forcefully to make room for it. The themes for those exhibitions over two hundred years have been nearly identical; I remember the name for Osaka Expo in 1970 having been "Progress and Harmony for Mankind"; these themes more or less always revolve around technological innovation and national progress with some lip-service only to a desire for human life in harmony with nature. There would have been a chance to stress this point in Shanghai by painting the whole building in green or even to change the very color of one's national flag from red into green.
Behind all the slogans stands a momentum to arouse a spirit of commercial competition to be the most advanced among the family of nations, as if there existed no real problems on earth at present, such as poverty for 1/3 of people in China, social dislocation, exploitation of the underpriveledged, ever quicker decline of the very biodiversity in China, ongoing wars and ever increasing global warming everywhere, threatening human life on earth as such.

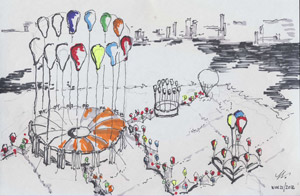

To get once and for all out of this senseless race of nationalistic competition and of the exploitation of our resources for national or corporate gain our Institute had proposed a completely new overall approach for all future World Exhibitions, when we entered our design proposals for the Swiss Pavillon for the Nagoya World Exhibition in 2005, which was run under the motto "Nature's Wisdom", pretending to put on a green face. The main tenor of our proposal for the exhibition as a whole was that each participating nation should freely select another nation which it wishes to exhibit. In return it would be exhibited by the nation selected, so that for instance Switzerland exhibits Nepal, Nepal in return Switzerland; the USA and Russia would exhibit each other, so would Israel and Iran. I am sure every visitor to the event would love to find out how otherwise historically inimical nations see, interpret and exhibit each other. The whole exhibition would become an eye opener for every visitor. It would deepen the international, interracial and interreligious understanding between nations. Instead of a spirit of competition and national boasting it would create sympathy, good will, yes, love for each other, the visitor, the host, and the oganisers and designers.
bracketting in east asian architecture

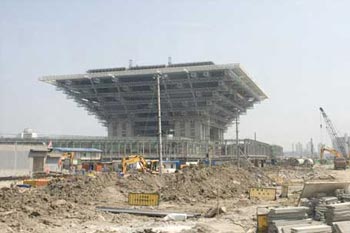

At the Shanghai Expo probably not only my but every visitor's attention will be immediately drawn to the centerpiece of the World Exhibition as a whole, the China Pavilion, the "Crown of the East", as it was called by newspapers. It is the only pavilion fated to survive the expo to become a permanent landmark for the site as a museum of Chinese history and culture.
My immediate reaction as an architect was that I must have seen this form before, but hardly at such a huge and monumental scale. It is about 69 meters high. One's guess is that is take off from some Chinese primeval form of indigenous Chinese architecture.
The designers state that the structure of the building is to derived from or inspired by traditional bracketing techniques as visible in most of the traditional Chinese, Korean and Japanese wooden Imperial Palace architecture, and derivative from it, in most of the religious Daoist and Buddhist architecture in those countries. The intricate system of interlocking bracketting was developed to enable huge cantilevers and overhangs for the massive roof structures of these buildings. It was repeated in structures in structures of similar size in the various gates leading to palaces or temples.
These multiple interlocking bracket structures do seem to defy gravity, and do look so simple and ordinary that one has a feeling as if those structures are part of nature itself rather than the result of human engineering skills. Even the smallest examples of these bracketing structures invoke a feeling of grace or elegance. In addition, one senses they were not created by the ingenuity of one particular individual architect but must have evolved over centuries. Admiring them, we do not bow to a we do not need to bow to a small individual architectural ego-trip, but to a collective human genius. Here individualistic architecture is transcended and becomes objective, anonymous architecture. With these braketting structures the question who was the creator of them, or when they have been created doesn't even arise. That is the hallmark of all objective art and objective architecture, they are time- and nameless.
bracketting — from archetype to protoptype and stereotype

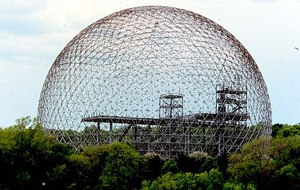

I stated before that I must have seen something like the forms of the China Pavillon even at a World Expo before. When and where? It might be slightly embarrassing, but it has been at a fairly recent World Exhibition, namely at the Japanese Pavilion by Tadao Ando at the Sevilla for Exhibition in Spain in 1992. His whole pavilion was dominated by about 15 meters high laminated wooden pillars ending on the top in a large intricate braketting system accentuated and silhouetted against a roof of translucent teflon-coated fabric.

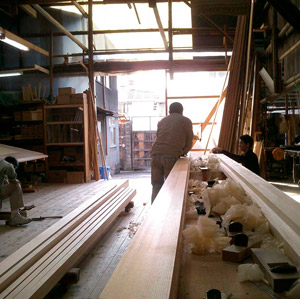

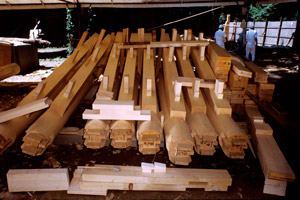

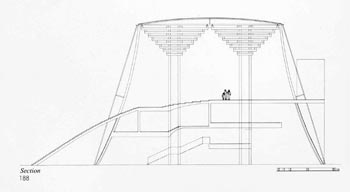

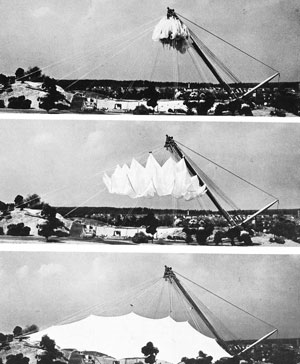

To make huge laminated wooden columns and a traditional wooden braketting technique the central part and, I feel, the main attraction of a pavilion from an East Asian country, in that case Japan, in a country whose architecture is traditionally based on stone like that of Spain, goes beyond any individual or national boasting or egotism. One has to know that Japan up the 19th century didn't have any stonen architecture at all, only a wooden one. At Sevilla Tadao Ando "built" a modern poem on the art of wooden bracketing; in addition, his design didn't just copy or exhibit an original Japanese bracketing skill long passed, but grasped its essence and translated it into modern 20th century architectural form.

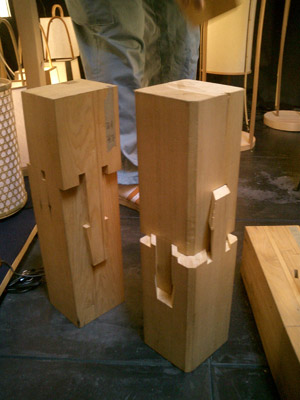

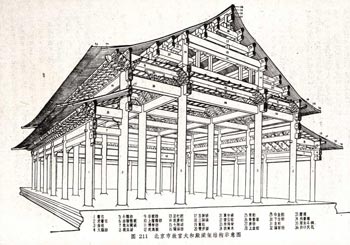

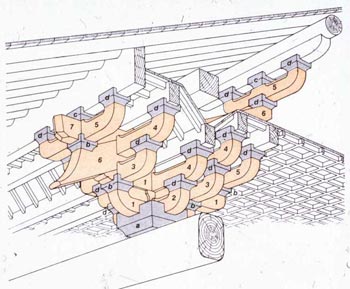

Concerning the technique and complexity of interlocking bracketing, one might want to search for an original archetype of it. The question is are there ancient structures transmitted by Chinese archeology or architectural anthropology or even still practiced nowadays somewhere in the lower traditions in East Asia which could help us to understand the tectonic logic which brought about this powerful form?
There is indeed a hardly known and rarely published predecessor of it in a ritual structure built anew annually at the small village of Nozawa Onsen in the Japanese Alps. It is, however, much smaller in scale than the China Pavilion, and it is constructed in two days, then used for an annual Shinto Ritual of Renewal of that particular mountain community and finally burnt as part of an ancient ritual action. Ref: 1.

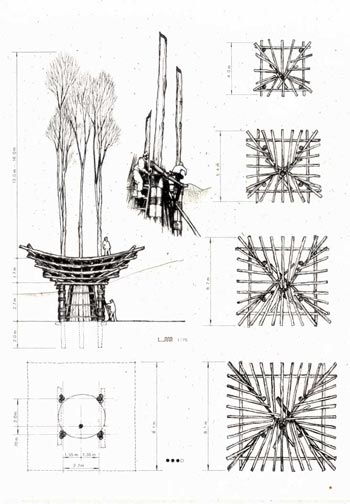

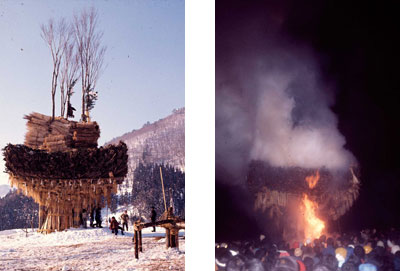

This originally seven- and now five-stepped structure is held together by binding with straw ropes only. No other carpentry connections are used. The square building rests on four pillars 2, 70 m by 2,70 m apart with one additional central pillar, all being freshly cut trees. The central pillar is fortified with rough wooden planks and brushwood. Looking at the plans and elevation one notices of it, that the slightly curved-up ends of the bracketed platform is not at all the result of some aesthetic or philosophical speculation by early man but a result of the two edge- beams from two sides coming to be placed on top of each other at all four corners. This alone might perhaps give us a the final answer to the age-old speculation as to why traditional Chinese wooden structures often feature roofshapes curving elegantly upwards at the corners.
This temporary artifact is destroyed in a ritual mockfight which goes on over half a night. A group of young men from the village, 25 years old with lit torches try to burn the artifact while men of 42 years of age have assembled on top it and try to defend it and themselves. Naturally, nowadays, just before the whole ritual structure goes up in flames, the older men jump down to safety. It might not be on par with a world exhibition, but it is quite a show.
For our context here this ritual building might serve as a rare example showing us how bracketting was technically achieved originally, second, what the resulting overall external form of such a wooden bracketting structure looks like if one strictly followed the tectonic principles only, and forgot about secondary symbolic and purely ornamental additions.
Paraphrasing an uncomparable and immortal sentence in Jean Gebser's life work, namely "origin is always present", yes it is, but to different degrees of intensity, one would want to add, sometimes as prototypes and sometimes just as stereotypes or perverse derivatives, as seen here in the China Pavilion of 2010.
Did the China Pavilion have to be that huge to fulfil its role to represent the largest nation on the globe successfully? Admittedly, it is built in the best tradition of the Imperial Palace in Beijing or any other Architecture of Power under totalitarian rule, in front of which a human being is usually dwarfed into an ant. But size is not the issue here. Big in size does not necessarily translate into intelligent, admirable or beautiful. And climbing to a socalled "roofgarden" of the pavilion at the top, what do you look down onto the huge exhibition ground is nothing but steel, concrete and plastic. One wonders whether all of this will end into better cities and better life.
At first glimpse the pavilion does look like featuring a bracketting structure, even though in steel and 69 high; but is it? Embarassingly enough, there seems little left at the China Pavilion of the ancient skill and ingenuity, — and above all —, the elegance and grace of the art of bracketing with over 2000 years of history.
1

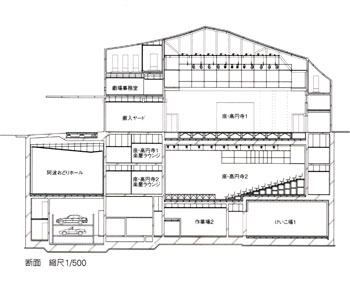

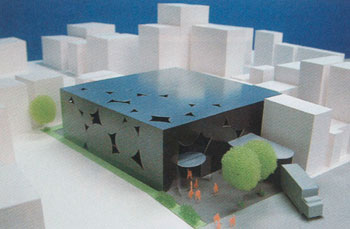

The subtitle is meant literally. Toyo Ito's just finished Za-Koenji Public Theatre in Tokyo, — black on all of its external walls and/or roof — , will undoubtedly not only absorb all of the sun' s rays shining on it, but also radiate the stored heat afterwards into the neighbourhood; it will surely become a sightseeing attraction this summer as the city's hottest spot in town. Tokyoites will be able to experience a small Urban Heat Island not only with their skin directly but also by the sight of a huge black object, i.e. by its negative Sense of Place. Pict. 1.
There is no mention in a recent interview with the architect Toyo Ito in the Japanese Shinkenchiku Magazine why he chose black for his external continuous surfaces. There are very few examples of single pieces of architecture let alone groups of buildings which are completely black; I only know of one group in India at a particular resort and therapy center. The visual effect is amazing. It has to be added, that in this case all the building are under huge trees and thus shaded and not exposed to much sun directly. Surprizingly enough, the buildings nearly disappear to human perception! Perhaps, but this is a perhaps, Toyo Ito wanted to make his building to visually disappear and not to add to the overall mess of the surrounding townscape.
And here a scientist's comment on the use of the color black: Dr Hashem Akbari, a physicist from the Lawrence Berkley National Laboratory in California, believes that by making urban areas more reflective, greenhouse gases can be offset. Also rooftops and pavements could be painted paler colours to reflect, rather than absorb, more of the sun's energy.
Unlike in earlier times, in 2009 one immediately feels tempted to ask what about green roofs which were stipulated for new buildings by the Tokyo Metropolitan Government by local bylaws already some years ago in order to counter the overheating of buildings and the annually rising summer temperatures in midtown Tokyo. Or what about green facades to balance the lack of green spaces on the ground in the inner city. Or else, what about shading devices on the facades, or provision for natural ventilation during the beautiful times of the Japanese spring and summer. One has the impression that all these important and nearly life-saving considerations for the future seem to have been sacrificed here to an apriori personal idea of wishing to create an unusual solid huge black object.
First, a few remarks regarding the structural aspects of this project. As visible on the section, one enters the main lobby and performance hall directly on the ground floor, and has to descend to a second hall in the first basement. Pict. 3.
2

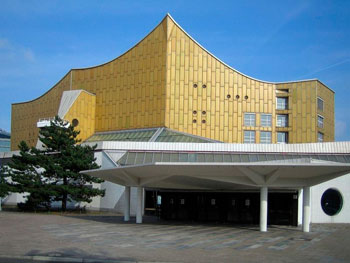

There is no distinction between walls and roofs on this building. Toyo Ito created a single continuous surface to envelop the building. This leads to the unique wall-roof-line with a tent-like silhouette. Externally, it has its predecessor in similar tent-like looks of Scharoun's Philharmonie Hall in Berlin of the early 1960's. Pict. 2. Strangely enough and quite differently from Scharoun's Hall, Toyo Ito's main hall does unfortunately not make use of the tent-like shape of the roof also internally as Sharon did, but gave the main audience hall just a flat roof with a suspended ceiling. It is interesting, one reads in the interview with the architect, that in the early stages of the design process when he had presented a slightly different proposal to a neighbourhood meeting, that there was a general strong reaction against what was labeled a “black metal box” with a flat roof. Pict. 4. That protest motivated Toyo Ito to mold the building more in the shape of a “circus tent”, as he called it.

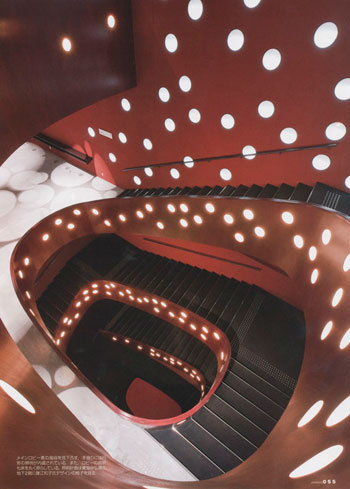

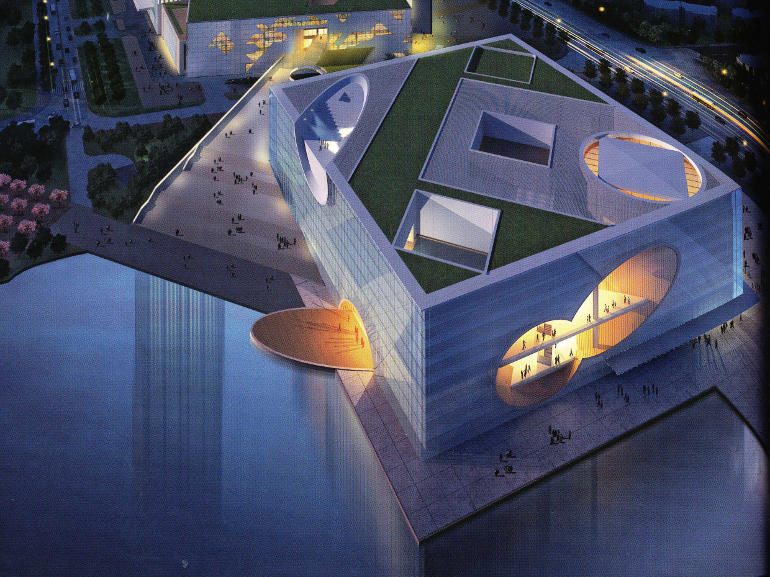

The metal-sheeted black walls and/or roofs are punctuated by circular windows, slightly different from the treatment visible in other recent projects. This play with circular light sources is also applied to the interior illumination devices, too. All this looks very attractive indeed, but practically, especially on the staircases, these low lights are bound to blind older people with the mildest forms of cataracts. Pict. 5.
Second, some remarks concerning the wider urban design aspects of this project. Here we come to the blindest of all blind spots in the urban architecture of Japan, both by individual or institutional architects, from the 1950's on.
The energy emanating from an isolated artifact by a single individual architect – however brilliant the design may be – will never match the energy emanating from an artifact create by a consensus of a community or by respecting and cooperating with a wider urban context. Look at good traditional examples of urban place-making in many European cities. History shows that isolated objects of corporate or individual architects' egos, or their combined ones tend to simply look grotesque in a very short time.
In the Japan after the war urban architecture consisted mainly of OBJECT-MAKING; in Japan's highly competitive and self-conscious society all these separate objects in an urban context come to neglect and reject each other mutually. Japan also created very few examples of the second stage of architectural sensitivity, that is, of SPACE-MAKING, where the inner and outer spaces of a project are given equal attention and design effort. The spatial Kakophony of Shinjuku in the center of Tokyo adds up to not more than a haphazard staccato of individual monuments to corporate greed, each one trying to outdo its neighbour. One would be hard-pressed to point at postwar examples of modern PLACE-MAKING in Japanese urban contexts like there existed in Japan's traditional urban environments.
Third, finally, a few remarks concerning the ethical aspects behind this type of architecture in our times, and in Japan in particular. Obviously the practice of architecture has always been and is more than a professional occupation for mere personal profit and reputation; I believe, it has indeed a strong ethical dimension, too. We have arrived at a point in human history where nature itself starts teaching us that the exploitation and consumption of natural resources has its limits, limits already visible on the horizon. Go to Beijing and try to enjoy a single day of unpolluted weather.
3
Responsibility for continuing global warming and environmental deterioration lies also with present private or corporate architects and urban planners; equally with socalled professors and educators at the architectural departments of our universities, one should add. They all together are the main form-givers of our present built environment intellectually and in terms of form. After forty years of teaching at such departments I have to confess, I have not seen one department which seriously teaches design techniques and planning strategies to prevent global warming and waste management. After all Co2 is a waste product, and a very costly one.
Every newspaper by now nearly every day carries an article of doom on the subject of climate change. All this seems to fall on closed ears with living Japanese architects who are mainly busy with individualistic and anachronistic bravour pieces in the Beaux Arts tradition and who manage to turn a deaf ear to that voice of the earth itself.
Listening to all the information and warning about climate change one realizes that everything in architecture has to be rethought and redesigned up from the doorhandle and the watertap onwards, but not for decorative purposes or as expression of individualistic artistic whims, but for reasons of human survival in an age of ever increasing global deterioration due to excessive CO2 emissions from our buildings, factories and means of transport. How buildings are heated, ventilated and cooled will have to be radically reviewed together with their structural design to ultimately measure up to a zero carbon environmet. Even the car industry has finally gotten the message, why not architects and construction firms. The age of subjective art and architecture, an architecture of waste and vanity, has to come to an end. A new awareness about sustainable design of our urban enviroment has to be born among our citizens, the planning and architectural profession, and last and most importantly, the educational institutions at all levels. Let us remember all of us are sharholders on and of this planet.
Architect Toyo Ito's latest design was not singled out for any personal reasons. It just stands representative of what has been termed here an urban architecture of waste and vanity . Perhaps, the concerns voiced in this context could be applied to 95% of other pieces of architecture by other socalled modern Japanese architects. After years of inaction and after years of denial, I plead to all of them to use their tremendous architectural and professional skills to incorporate the latest technologies to reduce greenhouse emissions and to use clean energy and waste saving devices in order to protect our environment, transform our economy, and to build a sustainable future even in cities.
4
Architects not voluntarily promoting and applying our recent knowledge about the threats of global warming and increasing environmental pollution, should be held responsible for it by the community. It is, for instance, already legally impossible in Germany to even cut a soingle tree in your garden arbitrarily without having to pay a penalty for it, equal to the costs for the replacement and raising of a new tree for it somewhere else.
Japanese society will soon probably be forced to use legal means to reduce CO2 emissions(1), to use renewable energy sources(2) and energy saving structures (3), as are increasingly enforced in European countries. Architecture in this country has to confront climate change headon like the car industry was recently forced to do. A governmental oversight commission could work as a whatchdog organization to decide whether a new project follows or brakes the new laws of design for a sustainable environment.
Energy hogs like the building discussed here, could be forced to have to pay a special “carbon tariff” which reflects its excess of allowed CO2 emissions and its unused chances for the production of renewable energy; incentives and tax brakes could have the same effect, postively speaking. If it doesn't cost anything to emit CO2, it won't change behaviour. One could also imagine a second state examination on subjects of sustainable architecture and urban planning being required for general architectural licensing. In the UK a socalled Green Building Council already called for a code to set targets for a zero carbon enviroment including energy, waste and water performance. According to this code all new or existing buildings would have to undergo environmental impact performance checks.
Perhaps, something like an open revolt against our present usual wasteful urban architecture and their creators might be necessary. A similar revolt is presently taking place in the medical realm in the USA. A new proposed law , Bill 1478, in the State of California would require doctors by law to provide patients with information of alternative methods of healing heart disease, the killer number one in the US . If this bill was passed then doctors in the future would be legally bound to tell their patients that there are methods like diet, exercise and therapy which can successfully cure heart diseases for next to no expenses, which their established high-tech methods can not. This would end the present useless medical tortures and expenses heart patients are made to suffer in order to line the pockets of doctors, medical universities and health insurance companies. The result would be that the State of California could save billions of dollars in medical expenses every year.
5
We need a similar revolutionary law guaranteeing the construction of sustainable architecture, and we need to create an architectural profession which is bound by law to create it, like we have laws enforcing the construction of earthquake resistent buildings already. Unsustainable architecture could be taxed out of existence.
In my vision, — given a different attitude in the architect — the Za-Koenji project could very well have become a community theatre with the same facilities and for the same money, but in the form of a terraced green oasis within the existing context of concrete structures, where kids and their mothers would choose to play during the day.
Possibility of an Architecture without Ego
In Japan’s architectural post-postmodern and economic post-bubble era, a period starting with the first decade of the 21st century, Japanese cities by now present a staccato of banal and repetative concrete or glass boxes, minimal or overdecorated, small or huge, low-rise or stacked high into the sky resulting in a townscape which has been basically designed by the same mind-set which gave birth to the first phase of modern architecture. With a single book, — namely Architecture without Architects published in 1964 — , Bernard Rudofsky reduced the majority of the artefacts of the Modern Movement to nothing but a huge mind-trip.
That by itself was quite a feat accomplished by one person, but unfortunately not very inspiring or helpful for the future. His book remained a collection of exotic and nostalgic images of an Age of Innocense, because it missed an important point: however much we may be attracted by such images of a more primitive way of building, we cannot go back in evolution. All the stunning pieces of indigenous architecture from all over the world he had collected as proof for his main thesis, did in fact have architects — admittedly, not in the sense of present-day architects academically trained to selfconscious “artists”, but of traditional skilled builders and artisan-carpenters.

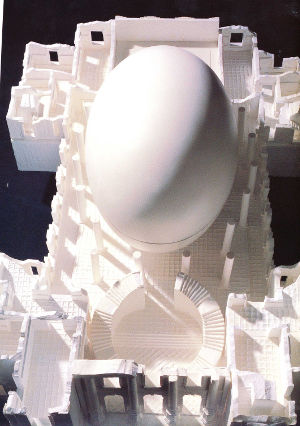

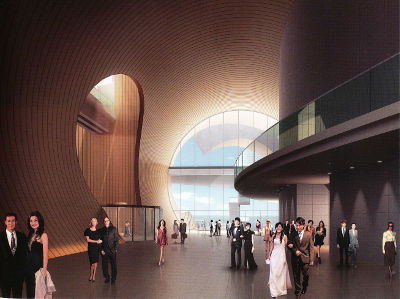

At present, we are more and more surrounded, invaded, yes, often mesmerized by an architecture, which could be summoned up as grotesque outputs of the egos of relatively few brand name star architects. To extend or better correct Rudofsky’s indirect critique of the Modern Movement we here propose a plea for the need of an “Architecture not without Architects”, but of an “Architecture, yes, with Architects, but Architects without Ego”.
The architecture of this new group of architects does already exists but it is neither well recognized nor well published. We are too much dazzled by the present propaganda of globally spread super-structures — here I refer to both corporate offices, hotels or museums all designed seemingly without financial limits, and also to the anonymous trash of consumer architecture. So far a term proper or catch phrase for this new type of architecture is missing. What I am hinting at here, is an architecture without ego as against an architecture of unsustainable consumption, mere vanity and pure waste.

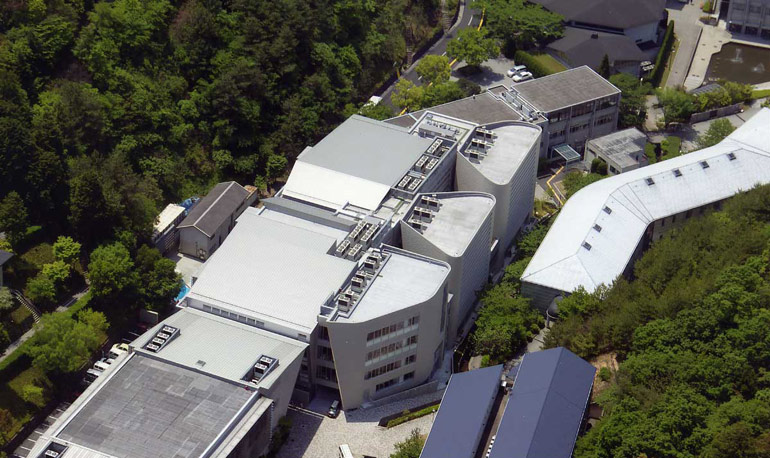

Prof. Kiyokazu Arai`s two recent extensions to the campus of Seika University in the north of Kyoto, could easily be counted among this new category of an egoless architecture which, by the way, does not mean an anonymous one. It definitely does not belong to the well-known common breed of post-modern and post-bubble architecture of Japan any longer. Arai sets the stage to an architecture which has a new character; to me it exhibits simultanously a formal and structural language globally applicable, and on the other hand, it reflects something of the traditional Kyoto townhouses, a type of ‘vernacular’ Japanese architecture close to Rudofsky's “the Architecture without Architects”
When we encounter it we do not feel like reacting to his architecture emotionally as we do to the new anonymous mess in downtown Kyoto, Osaka or any other Japanese city, nor do we feel like being forced to having to admire or praise it like any of the latest architectural stunt acts or emblems of present-day materialistic culture as visible in Dubai, Beijing or Hongkong. We pass or use his buildings quietly without being disturbed. The outside of the buildings is more hinting at the work of a refined artisan than brand-name architect of our days. What a relieve! And still his architecture is unique and new. Where are the traces of the ego of the architect here, one askes.
The design problems we confront today in the Age of Globalization are not so much related to a choice between an architecture of ever increasing universal global character versus an architecture of local sense of place, — to paraphrase Kenneth Frampton concerns —, but to a choice between an architecture of, or without ego, — and here I include the ego of individual architect as well as corporate and national egos.
It is questionable whether absolute energy hogs like the national TV tower in Beijing or other bravour pieces of skyscrapers and corporate headquarters — notwithstanding their dominating political and economic power in our societies — should uncritically be accepted as the most important visual landmarks of our urban silhouettes. Should an architect just play the role of a hore in the process of environmental abuse, or ever increasing cycle of our throw-away culture and hunger after aesthetic novelty?
Our world is slowly converted into a life of Hungry Ghosts of Buddhist lore with ever quicker rates of production and consumption of anything glittering and new, and ever less feeling of any contentment. Mankind relax, one wants to wish to ourselves! Look at nature, there everything is constantly new, individual, original and ever refreshing. Not even two fallen leaves are the same.
We seem to have forgotten, the truly new seems to arise automatically whenever there is freedom from the xerox-copying machine of the ego, and that not only in architecture. The truly creative mind, — neither struggling simply for novelty nor being enslaved by a nostalgia for the past will forever play the role of a hollow bamboo, — to use an ancient Chinese metaphor.
Taking up what I mentioned about a certain quality of non-ego in Arai's new buildings and a reference to — not at all imitation of — the Kyo-Machiya, the traditional Kyoto urban dwelling, he admitted in an informal interview to two main strains of inspiration: one is related to the actual physical site of Seika University which gently winds itself up a valley in the northern mountains of Kyoto. Arai wanted to follow that movement presented by nature itself with his new buildings. The site came with certain restrictions in terms of height, color, and roof-form, since it is part of the fuchi-chiku of Kyoto, a special preservation zone of green encircling the north, west and east of the old city of Kyoto. So the buildings had to be low.
The other inspiration has come from the structure and spatial delicacies of the traditional urban dwellings in Kyoto. There are the latticed windows and verandhas which constitute their facades and in reality very efficiently filter light, air and visibility. The “modern” latticing of the facades of Arai's buildings towards the road — even though very different in scale, material and color, does indeed give the campus now something of the architectural quality of Kyoto's traditional machinami or streetscapes.

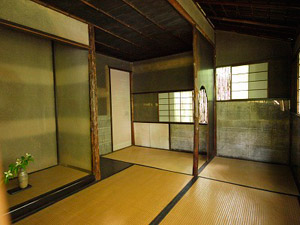

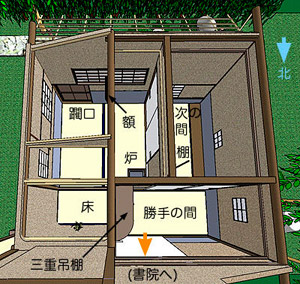

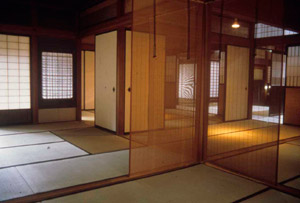

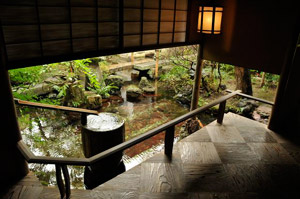

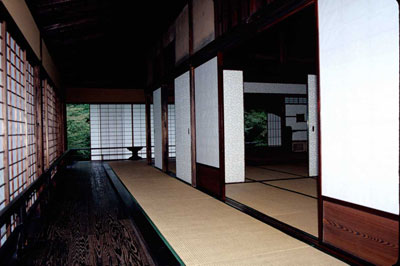

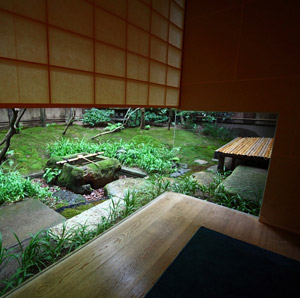

Another characteristic feature of the traditional Kyoto townhouses are their narrow interior courtyards, the tsubo-niwa. The space requirements of the program for Seika's departments of Manga, Visual Design, Hanga and Western Painting were so large, that the buildings became too deep for enough light and ventilation. This led Arai to incorporate interior courts, somewhat narrow and high, for the lower part of the complex, prodiving a highly conmplex sense of place within the buildings. The slightly odd shapes of the buildings beyond this chain of interior courtyards, that is, on the side opposite the street, become individual structures of their own, with facades suggesting buildings higher than they really are.
This double inspiration brought about a pleasant break with the conrete boxes with holes as windows, which is the basic building type of which Seika Campus abounds so far.
Whether Arai's buildings live up to recent new standards of a sustainable and eco-conscious architecture, in terms of carbon emissions and renewable energy, is clearly beyond this appraisal here, but his architecture would surely grow even more on us if it had been incorporated.
Obviously, Arai's architecture will not establish a new style, here provisionally termed an “Architecture without Ego”, with one stroke but it introduces an exeption into our time which seems so mesmerized by what here was called the international brand name architecture. It re-kindles one's faith in the architect as a socially conscientious professional and skillfull artisan.
The above view of Halong Bay — a UNESCO World Heritage Site — summarizes Vietnam of today: unspoiled scenic beauty, low-tech architecture and slow-speed boats, all managed by an honest communist effort to come to terms with an invasion of a global economy.
Since ancient times Hanoi has been a city structured by lakes and rivers, plenty of urban green and surrounded by an area of loosely interwoven trade villages. Hopefully Hanoi will not learn from the models of the modern Western city-planning nor imitate modern Western city-center redevelopment with its centripetally increasing building height and population density. So far, Hanoi has carefully preserved a urban structure and growth pattern in the form of a inverted pyramid, with lowest height of buildings in the center and density and height increasing towards the perimeter. If this pattern could be retained, strengthened and translated into architectural poetry, the whole modern planning world could learn from it.

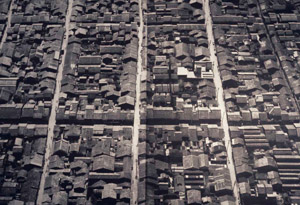

Hanoi can be roughly described as a city in three layers. The central area of Hanoi is formed by the huge Hoan Kiem Lake and the original old 36 Streets or Quarters towards its north, laid out around the 13th century. The buildings stand mostly on very narrow deep plots from two to five stories high. The succeeding layer is characterized by rather wide tree-lined boulevards, surely one of the golden eggs French colonial rule left behind. These boulevards have wide pedestrian sidewalks, and their 19th and early 20th century architecture is very European in flavour, but built on far wider plots; they often have front gardens. On the whole one is not oppressed by too much architectural ego, so to say. The buildings are mostly from five to seven stories, naturally with the exception of modernist towerblocks like Hilton Hotel. The outmost third layer is marked by more recent and rather haphazard growth around ancient villages.
One gets a taste of this outer zone on one’s approximately one hour’s drive from the airport into Hanoi: first right and left just finished huge, but flat industrial estates of international enterprises, then through suburban villages with a lot of street life and a type of building similar to that in the original center of Hanoi, equally on a narrow sites of 3–5m width but often 30m deep, with a strange 4–6 story high building, facing the street, and all of them, having a roofed open verandah on their top. If there is a common architectural denominator to indigenous or regional Hanoi architecture, then it is this type of building. It follows you on your drive from then on right up to the old 36 Quarters of old Hanoi.
The developing countries in East Asia, and therefore also Vietnam, try to survive in a very schizophrenic context in the moment: one the one hand they themselves wish and they are pushed internationally to develop as quickly as possible, — and that is the carrot side if the situation; it is speeded up by the massive influx of international money; on the other hand, they are urged not to pollute their environments and use sustainable development policies in industry and architecture and urban planning. And that is the stick of the present situation. The developed societies warn them from their own recent experience against further pollution and unsustainable growth, but simultaneously crave their cheap labour and build up manufacturing capacity. The West’s expectation and pressure for ever more and cheaper goods and simultanously for responsible and sustainable environmental behaviour is plain unreasonable, useless and ultimately self-destructive; pollution of the air and water doesn’t stop at regional or national boundaries any longer.

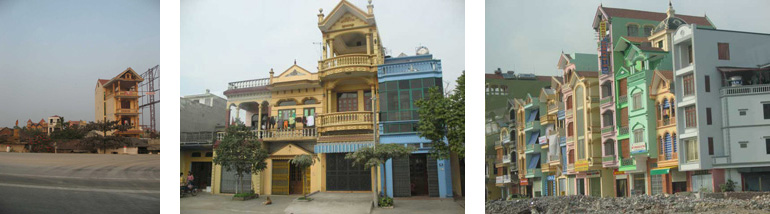

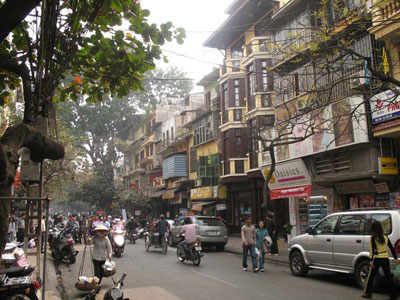

Strolling through the Old Quarters north of Hoan Kiem Lake one realizes suddenly what Lawsonification has done to our central city, Japan included. These centrally computer-controlled and externally architecturally identical garagelike stores for groceries and other daily necessities, — Lawson, 7 and 11, and others — open twenty-four hours and staffed by part-timers in shifts, have practically eradicated the old pa-and-ma variety of groceries and to a great degree monotonized streetscapes of our inner cities. In old Hanoi this old variety and complexity of multi-use architecture mixed with owned housing still exists. Naturally, one could easily miss the noise and danger of the ever-present motor-cycle, or have at least their exhausts cleaned up; but the motor car would probably destroy the whole spuke even quicker. Perhaps, and this is my fear, this unique architecture and atmosphere nursed by the very owners of each plot will probably disappear here fairly soon, too. It would be a pity if it were replaced by the common Mori Hills formula of Tokyo’s Roppongi district. Yes, Mori does claim his redevelopment schemes of super high-rise architecture contain diverse urban functions and uses, but all at one point on top of each other, designed and controlled by just one huge financial outfit, and ultimately owned by some anonymous shareholders who sit in Florida or on the Bermudas.
There should be no misunderstanding, I am not suggesting to enshrine the architecture of these old 36 Quarters of Hanoi, far from it, I suggest to learn from it in a social and architectural sense. No modern academically trained architect today could or even would want to continue the complexity of this street architecture, created by the thousand hands and minds of the anonymous dwellers there over a couple of decades, yes, centuries. It is true critical regional architecture marked by a subtle balance between the social, architectural and economic goals and needs of a particular society. More than urban architecture, it is a kind of urban nature. It has grown over a long time, and it constantly renews itself organically, even though in very small steps and jumps. But I wish to emphasize that everyone from this globe who travels to Hanoi today will end up next day in some coffee or restaurant or boutique of the old city. It has a transnational and transracial attraction.
Development of the individual human or of whole cultures mostly occurs in three stages: it starts with an urge to fulfill basic material needs, like food, shelter and love, and is followed by the urge to satisfy aesthetic needs such as, with cultural luxuries and pleasures which come with riches and power. Spiritual needs mostly — there are exceptions in history — arise in the human being after the fulfillment of the previous two. Neither individuals nor civilizations can probably take a shortcut, even though — as we witness in East Asia in the moment — the speed of material and aesthetic development seems to increase exponentially in recent history. Spiritual voices from the East Asia are mute so far.
So, for the Westerner, going to Hanoi makes us aware of what we have lost in our cities, and what we should help the Vietnamese to treasure, keep and nurture.

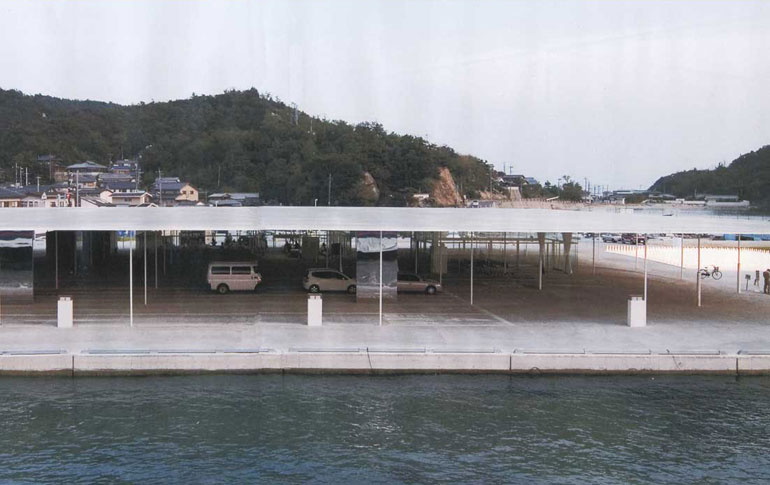

The Harbor Terminal built in 2006 on the Island of Naoshima surely reaches a climax of an already well-discussed fashionable wave towards ever more lightness, brightness, transparency and insubstantiality in Japanese architectural design, especially in the life work of Sejima Kazuyo and Nishizawa Ryue. Functionally, here on Naoshima one large “super-flat” metal roof covers a ticket office, a waiting hall for ferry passengers, a souvenir and coffee shop, and a flexible event hall, and in addition, provides ample space for casual parking.
As for modern product design, one feels that a similar climax in minimalism had been reached by a steel table, 9.5m long, 2.6 m wide, made of a single prestressed 3mm thick steel plate, which rested just on four legs on its corners. It was the brainchild of Ishigami Junya, a young architect from Tokyo.
Yes, both structures even though at different scale are light and thin alright, but do they convey grace? Or do they simply remind us of a magician’s floating or levitation act?

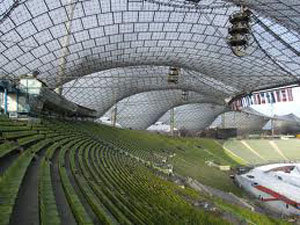

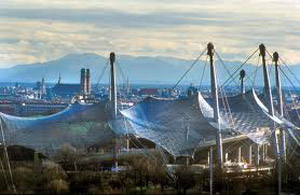

The trend towards lighter and more diaphanous structures in human architecture and product design started ages ago, it did not coincide with the rise of the modern movement in the early 20th century, nor is it presently just a fashion in Japan. Perhaps it does not appear just accidentally at this point in wider human history. It can be understood as an unconscious artistic expression of a particular stage in the evolution of human consciousness when it developed a growing awareness and desire to express transparency. In an essay meant as an introduction to a Japanese Design and Architecture Exhibition at the Lousianna Museum of Modern Art in Copenhagen in 1995, I had introduced Jean Gebser’s, a 20th century German thinker’s unique vision and interpretation of human art and architecture which has escaped the notice of architectural awareness so far. In his life’s opus which he had called “Origin and Present — Foundations of an Aperspective World — Contribution to a History of the Growth of Consciousness”, he links the evolution of human material and behavioral culture to the growth of the evolution of human consciousness, and that from its most ancient past up to now: he interprets this evolution as a process from an archaic, via a magic, a mythic, a mental to a transparent phase. According to him the archaic phase showed the human being still very much in unison with nature, in the magical phase there appears a first emergence of an awareness of a self differentiated from nature; in the mythical epoch an early verbal mind is developed, and at the mental phase of evolution, basically our modern time, the human being acquires a fully fledged ego in opposition to his body and nature as such. In the fifth, or what Gebser called the integral phase of evolution, the human being experiences wholeness, unison with everything. To Gebser this means that from here on the previous levels of consciousness have become transparent to the human being. He argues that this “integrating diaphanization” is the central feature of human consciousness to come, even though this “future” has probably started already with the birth of Gautama Buddha.
Naoshima: transparency with glass
Naoashima: superflat
Does this increasing inner sense of unity, transparency and lightness perhaps also express itself in an urge to make our external creations also lighter and more transparent? Should they become more graceful? Yes, definitely, but to be precise not in a sense of levitation and ultimate disappearance but perhaps more in a sense of grace balanced by gravity. To illustrate what is meant here by balance of gravity and grace, and by transparency in some of the best human design, here an image from ancient China — also just a roof floating over a viewing spot in Guilin, and an image from Japan — the interpenetration of rooms in a traditional Japanese townhouse in Takayama, a transparency achieved without the use of glass.
No doubt, to recognize and/or create true grace, you will have to be of that fifth stage of consciousness yourself. It can’t just be achieved by a couple of formal tricks or by magic. On this earth, — however much we may pretend in our creations or behaviour — we will never defeat gravity. And there is nothing perverse about weightlessness in space, but there is here on earth. Yes, recent space and rocket technology will influence our creations here in our architectural forms. These forms will not just be childish but definitely an expression of a change of consciousness.
Grace we find best at the two extremes of the immense spectrum of consciousness, in the realm of the unconscious, — a flock of cranes dancing — , or at the other end, in the superconscious or the holistic, — a Buddha statue, sitting on the crest of a lotus flower — perhaps the only image of a human being truly sitting and grounded, but nevertheless floating, a perfect balance between gravity and grace, no tricks.
Admittedly, such balance is difficult to enter into internally or to build externally. But the best of human creations have made it visible throughout the ages. The two above structures — the terminal and the table — don’t show a victory over gravity, but quite to the contrary, a fight with and cheating of gravity; gravity cannot be overcome in the physical body in a physical universe. A table seemingly floating in mid-air is a magician’s trick, so is an absolutely flat roof, only 15 cm thick. These architects belong more to the guild of magicians than builders. They don’t work with gravity, like for instance, a spiders web or a suspension bridge does, they work against it. They only fox the eye of the beholder.
Ishigami Junya: magic table
We can make poems or build but intimations of a balance between gravity and grace. In other words, we can “dream” about it, build substitutes of it. That is our tragedy as humans, we can intuit the real, — a sense of unity, a sense of global wholeness and grace, but we do and live only a substitutes of it in our various cultures in history — that’s what human culture ultimately has been and is: a substitute for what we really want and what are truly capable of achieving. Look at man’s latest attempts to reach the sky, in Beijing, in Dubai, New York or Paris, to mention only the names of places rather than those of their designers: we fake, not show grace.
In summary: we may ask, is the Naoshima Terminal a structural bravour piece? Yes, definitely, but it surely does not disclose how this roof — looking like a sheet of white paper — is actually be held up.
Is it an architectural bravour piece? Visually, it comes close to the equivalent of a architectural floating carpet of Arabian magic tradition. Functionally, open on all four sides, it probably fulfills its required program; experientially, our critique with such post-Miesian openness and glassiness is: you approach it, you see it all and at once, and there will be nothing else left to discover and conquer the next time.
Is it an environmental or ecological bravour piece: hardly. One has the feeling that this building can hardly sustain itself energetically, forgetting about it producing extra energy. If public works projects can’t be build environmentally and ecologically more friendly, and energywise more sustainable, then which projects will be?

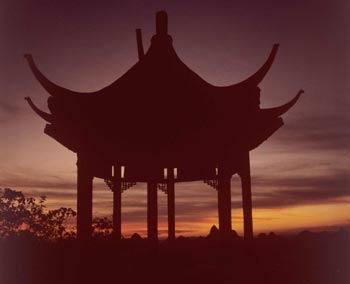

China: gravity and grace
Japan: transparency without glass
The basic difference between Sejima’s Naoshima terminal building and the traditionally Chinese roof structure quoted here is similar to that between a fakir standing on one leg for hours or days and presenting an image of tension and stress, and a yogin who sits on a posture of utmost ease — and thus emanates ease to the viewer, too.
The human being — in his own body and in his creations — has always been and always will be struggling with the “Disease of Time”, that is impermanence, decay over time and finally exstinction. From a Western biblical perspective one could say that the human being is punished for his original sin by the disease of time. Never again after the “fall” has the human being been at ease with time. Deep down he realizes that time cannot be healed, however, he discovered very early that it can be renewed. “Time flies, as they say — or time renews itself as we would say”, Prof. Tiwari from Nepal added to his New Years wishes last April.
Here a view of the Karesansui or Dry Landscape Garden of Ryoanji, a Zen Temple in Kyoto from April 2006. Present scholarship places its origin approximately into the middle of the 15th century. The designers and their intentions remain basically unknown. But Ryoanji, like no other extant traditional Japanese garden, has become a new paradigm of landscape design in modern times all over world, and even in Japan itself. In a strange sense it survives by ever more clones and permutations.
Closer looks, however, reveal that this garden must have recently undergone a major facelift which no Westener would have expected, or if he had been asked , would not have easily condoned. Not only was the roof of the surrounding wall furnished with brand new shingles, all the rocks were washed down and thus denuded of their admired patina and very small and subtle moss which had settled there over hundreds of years and thus had become part of their particular beauty to us. As one discovered in the process of cleaning it wasn’t simply moss, but Lichen, a symbiotic combination of two life forms, algae and fungi, that had covered the rocks and was slowly splitting and dissolving them. (1)
When the rocks were washed down and freed of their accumulated layers of dust and parasitic growth, what re-appeared was not something like the ‘original face’ of those rocks, the archetype “rock” as such, but just their hypothetical face as of 1450. Who knows whether the stones were not covered with some moss already at the time when they were actually set into the garden? Their original color and structure will irretrievably be lost.
The recent restoration in Ryoanji has nothing mystical, religious or ritualistic about it. It was just some partial repair or restoration within the garden, as is usual in the architecture and gardens of the West, too. It was a purely physical act. After some time this restoration will have to be done again. By restoration, aging and decay, the disease of time, cannot be healed. Time will ultimately win. In this context it is notable that in India the name of the all-loving and all-devouring Goddess Kali derives from the Sanskrit kal meaning black, time, and death. She is a personification of the disease of time in East Asia.
Here a few famous examples of such repair and restoration work Japan: Katsura Detached Villa was completely disassembled and re-built from 1976 to 1982, even though every visitor nowadays will be told that the present form is that of the middle of the 17th century. The much admired machiya, or wooden Kyoto townhouses, have always been subject to ravaging conflagrations in history and were quickly replaced, not as strict copies of the old ones but with reasonable adjustments and alterations. In more modern times, the Metabolists, a group of Japanese progressive architects in the early 60’s used the very recognition of different life or decay cycles of human beings and man-made artefacts, — combined with different scales of building operation in modern times —, as the main structuring feature for their own urban design proposals in the last half of the twentieth century.
Modern Japanese preservation policies of traditional single buildings or groups of buildings are out of tune with this traditional practice of restoration, repair and exchange. The reason is, that these laws were based on European strategies and policies of preservation; but those were basically meant and formulated for stone buildings, and not for one- or two-storied wooden ones as existed in Japan up to the mid-19th century.

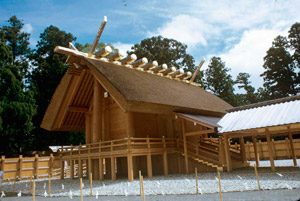

Time might not be able to be healed, but the human being from early on discovered that it can be ritually renewed. Probably mostly unknown to the rest of the world but in actual fact rites of renewal are still very pervasive in contemporary Japanese culture. They inform the very form and content of Shinto liturgy and its ritual behaviour. The biggest rite of renewal in architectural terms is the shiki-nen-sengu, the renewal of the Imperial Ancestor Shrines at Ise at fixed intervals, i.e. every twenty, or originally, every 19 years. About 15, 000 Hinoki trees, all about 200 years old, will be felled for this re-construction of the overall 115 sanctuaries. The cutting of the first tree for the sixty-second renewal has been performed again this spring, naturally in utter secrecy and at night.

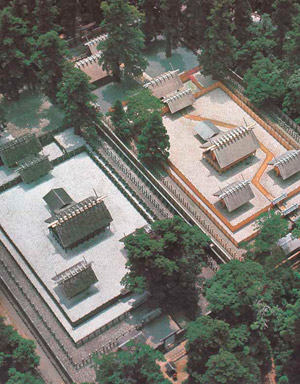

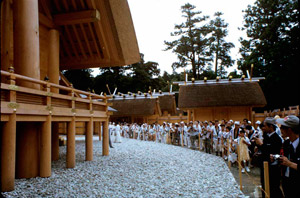

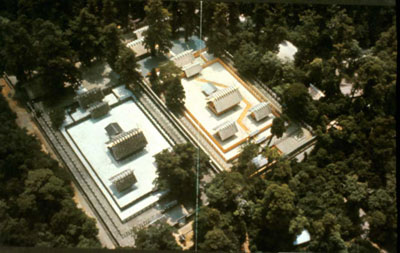

It is officially one of the most ‘sacred’ ritual acts in the process of renewal as a whole — but in fact, it consists simply of the felling of two trees which after eight years will become the shin-no-mihashira, or, “the sacred pillar of the heart”, or in Western terms, “the holiest of holies” within the two sanctuaries. They will ultimately be buried underneath the reconstructed two main buildings of the Imperial Ancestor Shrines; one of these is dedicated to the deity of the sun, the other to that of food. Even for us in the 21st century the two deities could easily stand for the two most important energies sustaining human life on earth, sunlight and food. And adequately enough, these two “deities” are venerated in the form of a tree, reminding us of its sacred role in supplying us with oxygen to survive.
During this eight year long rite of rebuilding absolutely everything is going to be renewed, all the buildings, fences and gates, all the deity treasures and decorations inside the buildings and, last not least, all the thousands of white river pebbles spread in the precinct. The sight and smell of the renewed shrines confirms to us the strange paradox we require from the sacred object, it should always look very fresh, but simultaneously, be of the most ancient possible form, be beyond time as such, be something like ‘the original face’ of a sanctuary as such.
Such rites of renewal are still performed in Japan at various scales and at various time cycles, and of various local or national import. Here belong the annually recurring matsuri, or Shinto village festivals at a communal level, the rebuilding rites of Shinto shrines themselves, those occasional renewal rites for an individual, a particular group, or even just for an object, such as your new motor car; they are performed because one feels a need to recharge the depleted energy of valued objects, deities in shrines, of human beings, yes, even of the whole nation; the renewal of the whole nation is done at the occasion of a the daijo-sai, “The First-Fruits Great Tasting Ceremony” performed with each enthronement of a new emperor. Therefore, Japanese live now in the still infant years of heisei 18, not in 2006 as the West does.
Traditional and modern Japan has always known of both restoration and renewal. There is a great difference between restoration and renewal, not so much linguistically, but in terms of human action: restoration has a physical dimension, renewal has religious implications.
Restoration or repair is integral to a linear or historical understanding of time, an understanding of our world in terms of events along an irreversible time sequence; to counter this undeniable movement the human being developed a deep desire to freeze something to some arbitrary point in time, conceptually like in our efforts of writing and re-writing history, and architecturally by legally freezing important buildings at one particular authentic point in history. Here belongs the architecture of stone; the pyramids and Mediterranean temples. One tries to outwit time by a combination of the seemingly ever-lasting building material, rocks and stones, and clear geometrical shapes. The Western concept such as urbs eterna or City Beautiful is probably the supreme expression of this endeavor. This endeavour is bound to be frustrating and ultimately to be a failure. But here also belongs the enduring Chinese desire and strive for eternal youth and everlasting life, through taking a magic elixir that can heal time and thus make man physically live for ever. “Time is Money”, is the ultimate modern verbal rendering of this attitude. If you make enough money, you can buy yourself extra time, thus seemingly heal the disease of time.
Renewal is integral to a cyclic or seasonal understanding and feeling of time, prevalent in what we have now relegated to “primitive” cultures or cultures who still live more in unison with nature; it is akin to melting with the a flow of nature, in its seasonal rhythms; to an identification with the whole, i. e. with the tree, not the leaf. With such vision time seems reversible and the human being renewable, since the human being here experiences himself as sustained by a larger, as we would say, global energy than his own limited one. The architecture we find here is and has been mostly of wood or other easily perishable materials, thus subject to fires or cyclones; zones with monsoon climates is its natural habitat. Here belongs man’s ancient quest to heal the disease of time by ritual renewal. What kept those rituals alive up to our days is mostly a sacred and often secret tradition supported by a deep human need for renewal, and that despite an acceptance of the day-today rapid cultural changes.
In my student days I studied in some of the world’s most renowned libraries, such as the awe-inspiring library of the British Museum, — where supposedly the dream and the horror of communism was born —, or the much smaller library of Mackintosh’s Fine Arts School in Glasgow. Their difference in size was immense, but there was a common denominator shared by almost all the classical style libraries: that was their dark atmosphere, dim spot lights only, hardly any sound, only whispering; visually you were surrounded by stacks of mostly leather bound and dusty books looking all very ancient. Both buildings were center oriented, inward looking only. You were meant to be glued to your seat over your book. One had the feeling of being in a monastic setting with ancient editions of the Bible, the Greek tragedies and other heavy volumes of sacred wisdom. One wasn’t allowed to speak, forget about laughing. Libraries were conceived as castles of learning, education and ancient wisdom, as if education by default had to be directed backwards. And above all, the accent was on seriousness.
The results of this cloistered and serious paradigm of human learning, whether in the dark halls of Oxford, Harvard or Berlin, ultimately sanctioned by the “religions of the book” from 2000 to 2500 years ago and not derived from “religions of personal experience”, are not encouraging: the 20th century was the bloodiest in human history, and the 21st promises to beat the gruesome record.
If we envisage a brighter future, we shall have to give birth to a completely new human being, and perhaps start with a completely new paradigm of education; we shall have to build completely new institutions for this education, including libraries. After centuries of sectarian bloodshed man had finally adopted a general principle of freedom of religion and of all kinds of socio-cultural philosophies; this principle failed miserably; we need freedom from religion, from all philosophical and socalled “divine” teachings! We need light, directly.
Where should we start? Enlightened masters of old and modern brain scientists tell us that it might be too late to initiate such new paradigm of learning at the level of higher education, our universities. The cultural hypnoses of different countries are usually fully accomplished before the age of 14, before puberty. That is the age when the human mind is most pliable. That is the most formative phase of life. The basic cultural hypnosis of any country, or what we usually refer to as “education” is finished by that age. Ask a person of 42 or 80 a spiritual question and he or she will answer automatically by reciting what he has been taught at around the age 10 to 14. After that age human intelligence in most cases seems to stop growing. Thus, the new human being has to be created between birth and the age of 14.
Photo Plans
Architects are hardly equipped to create this new paradigm, but they can intuitively give birth to its new outer form and setting. It has been the role of the artist, more than of anyone else, to foresee and give form to new human growth through his work by intuition, not logic.

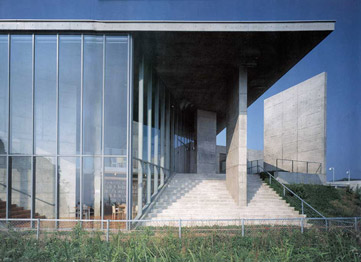

A step in the direction of more light in our educational institutions is the Library of Picture Books in Iwaki City of Fukushima Prefecture by Tadao Ando. Here the overall atmosphere is bright, transparent, airy; nearly from any point inside the library one has a view over green closeby and over the ocean far away; no dust on or inside the books; from the walls with open bookshelves up to the ceiling every book is quasi laughing at you. This organization of the books in their individual cubicles seems to echo the structure of our human memory in the brain. In this library bright colours and funny forms and figures surround you everywhere. I am sure there is no sign, don’t laugh, anywhere. An atmosphere of playfulness, not awe or indoctrination, is the hallmark of this new paradigm of educational facility: it is new in content, and new in outer form.
Admittedly this is a library for children’s books, picture books from all over the world, donated from a private collection. But to my mind it moves away from the established classical paradigm of what a library was and what it should look like. About ten years ago, in the mid-nineties Tadao Ando had broken perhaps the most important traditional paradigm in East Asian architecture, and that has been the form of a Buddhist temple. With his Watertemple Honpukuji on Awajishima from the mid-nineties he practically single-handedly ended a 2000 year old tradition in Buddhism to base their temple architecture, in form and larger spatial order, on the architecture of the Chinese Imperial Palace. A new Buddhist temple built today in the old paradigm would be an obvious anachronism or simply a bad joke to everyone.
Something similar happened here with the crystallization of a new prototype of library in Iwaki City. Tectonically, Ando does in this project, what he does best and what he has done best before at this particular scale of operation: he penetrates a square with an oblong rectangular form, and that in addition, on a slope. The complex spaces of the library are born at that junction out of this ‘simple’ interpenetration.
The library with various flights of stairs give children ample space to withdraw to their favourite corner and read, go to places to play together or to places to look outside and just dream. This library allows free movement, yes, breathes a sense of freedom. It does not need wardens to enforce rules. It is meant and designed as a domain of innocence, playfulness and joy.
The materials used are few: fair-faced concrete, glass, and wooden flooring, full-stop. No firlefans, no added decoration anywhere. Or? Yes, there are these immense free-standing concrete walls: two of them on the steps carry the roof, the other one outside the roofed building carries nothing. It reflects light. But, in effect, it is a light wall.
As often, Tadao Ando uses in his library the heaviest building material available, namely reinforced concrete, but what he really creates are spaces made of light. He plays with one of the deep mysteries in this universe: we cannot see light directly, not even in outer space. To make clear what is hinted at here in his building: imagine the sight of a leaf being hit by a ray of light in an otherwise dark forest and thus being turned into light itself. Result: matter reveals light to our eyes, as light reveals matter to us. Form discloses the formless, and the formless discloses form, in Buddhist terms.

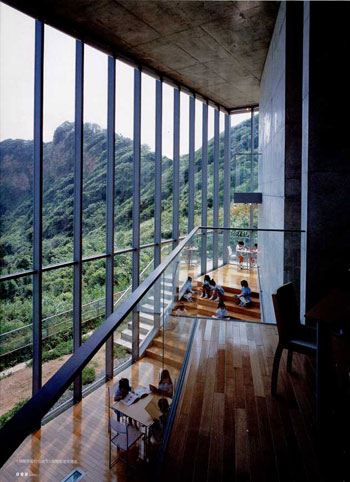

OutsideInside
Honpukuji
Library Exterior

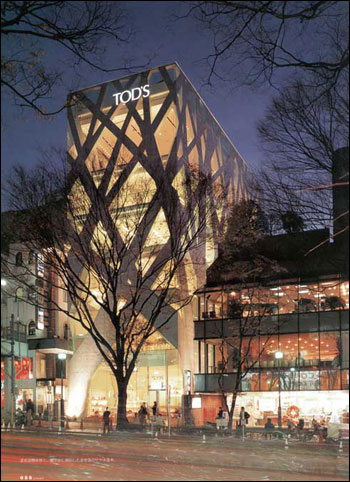

At first glance one feels like congratulating Toyo Ito for bringing some designed playfulness and fantasy back into the ubiquitous monotony of the usual glass curtain walling with equal distanced mullions in of our urban commercial districts. The pervasiveness of this paradigm of the architecture in the modern movement has probably less to do with any mesmerizing influence of the puritan work or personality of a Mies von der Rohe or even demands of economics but rather with a lack of joy and fantasy in the minds of contemporary architects.
The last time the organic metaphor has spooked massively through architectural designs in Japan was in the proposals of the Metabolists in Japan and those of TEAM X in Europe during the early 60’s, but we should remember that it has practically accompanied Western architecture with its fixation on the “orders” since ancient Egypt; I am thinking of the architectural column built in the image of a tree with flowers on top and bases for roots at the bottom. Till the middle of the twentieth century there was practically not a single building on the globe which wanted to exude a sense of political, economic or religious power that did not use Greek columns at some place of the façade or the interior to signal their legitimacy and trustworthiness as institutions.
What is one supposed to believe when one faces the latest formal organic metaphor of Toyo Ito’s L-shaped Tod’s Omote Sando Building, a new store for Italian brand shoes and bags in Tokyo. Is the facade really based on some repeatable new structural principle or is it simply a “lip service” to some kind of environmentally friendly or “green” architecture? One probably is not wrong to assume that this building is structurally rather expensive, less easy to maintain and less energy efficient than its old-fashioned and to our eyes more “boring” neighbours of yesterday.
There already exist plenty of modern building envelopes which truly interact with the environment actively, — like breathing skin to use the organic analogue —, which preserve, yes even produce energy in summer and winter, and which make a building thus more sustainable in a world becoming slowly aware of our global dwindling energy sources.
Every day we are fed new Hiob’s Messages about a deteriorating natural and urban environment surrounding us. Are Kisho Kurokawa’s or Toyo Ito’s “tree houses”, i.e. architecture in the image of the organically grown world, or the tree-boxes in the Japanese Ritsurin Park, i.e. nature in the image of man-made shapes, are they addressing our problems, or are they just plain Kitsch or a kind of perversity. A building might grow over time, but never in the shape of an tree. It is very difficult to argue that there is perversity in nature; it rather seems to be the product of the human mind and its creations.
To paraphrase Christopher Alexander, the city is not a tree, nor is a single building. Should it look like one? Should it look like an zelcova tree or like a pine tree if by some accident there are such trees planted along the street?
Perhaps what we face here is just clever salesmanship, a new advertising stunt to seduce us to consume some luxury or brand items offered inside the building, somewhat recalling Oldenberg’s proposal for a banana-shaped skyscraper on 42nd street in New York, — or just playfulness, as suggested at the start, often coming with leisure or with money, or, and I myself lean towards this assumption, simply deep confusion and unawareness about means and ends in architecture, about tectonics and ornament, about natural and built form. We design buildings which look like plants and clip plants so that they resemble furniture or buildings.
The only thing missing here one feels is a display of a large green product logo of approval at the entry similar to those we find nowadays on specifically “pure” organic food in the better department stores, only here in the case of the consumption of a built artefact it would have to be issued by some internationally recognized “International Green Architectural Society” guaranteeing the building’s authenticity as an environmentally friendly piece of architecture.
St. Louis, USA — The Orders
K. Kurokawa’s plant-type community

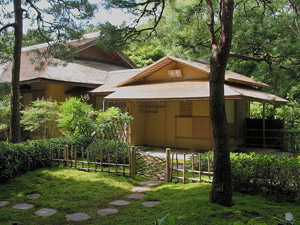

Trees as architecture, Ritsurin Park
With the Lotos House Kengo Kuma sees himself building in the very best of Western modern architecture. He admits to have been inspired by Mies von der Rohe’s Barcelona Pavillon of the late 1920’s. I, however, see him building in the best of pre-modern tradition of Japanese domestic architecture.
What his building and Mies’s Pavillon have in common is the use of steel columns as loadbearing elements, and stone as space defintions. But there the comparison ends. He does not use stone, here Travertine, as one would expect, in its inert heavy, layered quality piled up onto each other and visually subject to gravity, but he cuts his stone into thin sheets 30 mm thick and elegantly suspends these sheets by flat bars of stainless steel. This “ethereal wall” or floating stone screen becomes the façade.
Kengo Kuma, here and in earlier projects, is working from a background of deepseated archetypes of the Japanese traditional Sense of Place or MA, witnessed best at its climax for instance at Katsura Palace of the 17th century which even up to our days remains like an architectural Mecca for any Western architect visiting Japan. Emptiness and transparency have been the hidden theme of Katsura and are the theme of Kuma’s architecture.

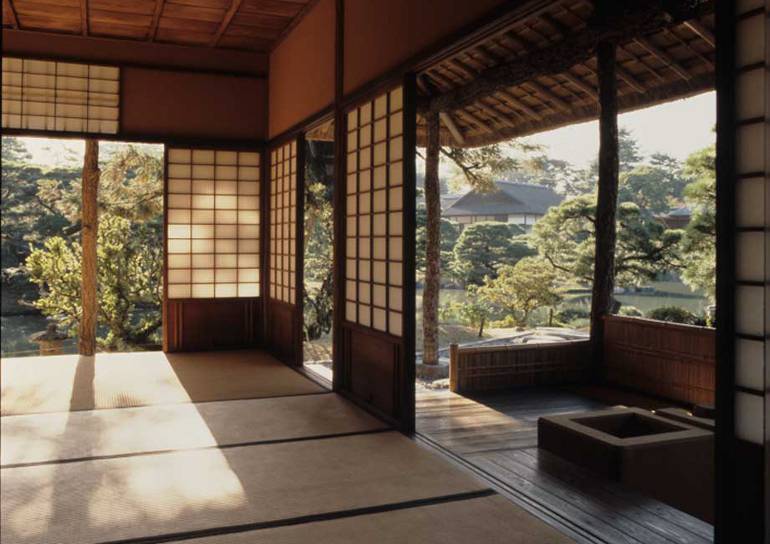

His suspended grid “wall” of Travertine immediately brings to mind the sliding grid “walls” of the Japanese Shoji, the internal or external paper doors once so characteristic of any traditional dwelling in Japan. Naturally, the structure of his screens is very clever, from the mind of a creative selfconscious individual working in a context of high-tech-craft. The structure of the Shoji, in contrast, were the result of a trans-individual consensus of long generations of builders in a tradition of handi-craft. Still, the echo can’t be overlooked. This very echo gives his building cultural roots and historical context, even though it is surely condemned to remain a one-of-a-kind; the screens are unique, but hardly repeatable. The Shoji, by comparison, have been very ordinary, but respected and used for up to a thousand years.
The spatial interpenetration of inside and outside again reminds us of the best tradition of dwellings and temples with integrated gardens especially in Kyoto. In Japan the garden has always stood at the threshold of nature and culture; it is neither simply the one nor the other, but it discloses both in the form of art. In summary, Kengo Kuma’s Lotos House is a contemporary version of the eternal theme of the traditional Japanese arts: the discipline, or better, the play with the right angle and natural form. It reflects Japan today, fusion of East and West, of now and then, and of nature and architecture.
